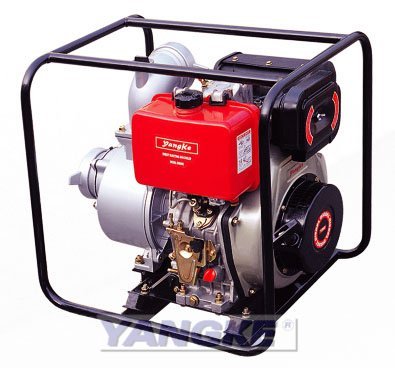

100KB16-6 DIESEL
Description:
* direct injection, 4-stroke, diesel engine.
* Light type aluminium alloy self-suction pump.
* High quality mechanical seal device.
* Easy maintenance.
* Meets a wide range of applications.
Technical specifications
| Model | 100KB16-6 |
|---|---|
| Suction port diameter mm (inch) | 100 (4") |
| Discharge port diameter mm (inch) | 100 (4") |
| Cont. capacity (m3/h) | 40 |
| Cont. head (m) | 16 |
| Self-priming time (s/4m) | 180 |
| Max suction head (m) | 8 |
| Rotation speed (rpm) | 3000 |
| Fuel consumption (g/kW×h) | ≤273 |
| Noise level dB(A)/7m | 79 |
| Dimension (L×W×H) (mm) | 645×480×600 |
| Packing size (L×W×H) (mm) | 665×500×635 |
| Net weight (kg) | 59 |
| Engine model | YK186F |
| Rated output power KW (HP) | 5.6 (7.6) |
| Rated speed (rpm) | 3000 |
| Fuel tank capacity (L) | 5.5 |
| Displacement (cc) | 406 |
| Starting system | Recoil starter |
