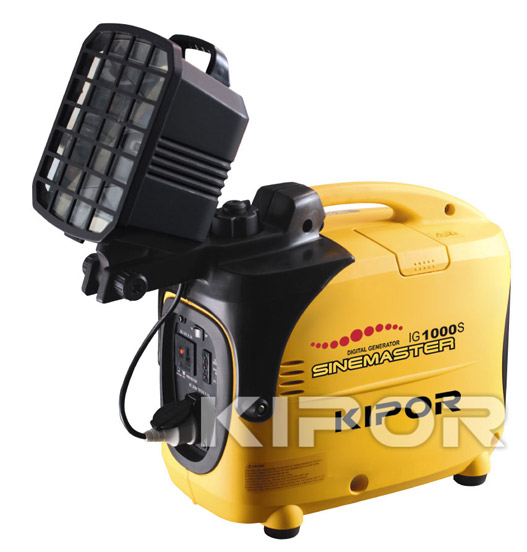

IG1000s
Description
Features and benefits:
*All the benefits of IG1000 remained.
*A spotlight provides the users backup illumination.
Spotlight data
*110V/230V,500W.
*lodine tungsten filament.
*210 rotation degrees.
| Rated frequency (Hz) | 50 60 |
| Rated voltage(V) | 230 120/240 |
| Rated current (A) | 3.9 7.5/3.8 |
| Rated speed(r/min) | 5500 |
| Rated output (kVA) | 0.9 |
| Max. output (kVA) | 1.0 |
| DC output | 12V-8.3A |
| Phase number | Single |
| Current circuit breaker | Without |
| Structural type | Portable, with spotlight |
| Fuel capacity（L） | 2.6 |
| Set fuel consumption（g/kW.h） | 500 |
| Continuous running time (hr) (rated output) | 4 |
| Noise level (zero load--full load) dB (A)/7m | 54-59 |
| Overall dimension(L×W×H)(mm) | 605×250×400 |
| Net weight（kg） | 15.5 |
| Starting system | Recoil starter |
| Fuel type | Automotive unlead gasoline |
| Lube oil type | CD grade or SAE10W30, 15W40 |
| Engine model | KG144 |
| Engine type | Single cylinder, 4-stroke, OHV, gasoline engine |
| Bore X Stroke | 43.5X36 |
| Displacement(ml) | 53.5 |
| Compression ratio | 8.5 |
| Rated power[kW(Hp)/(r/min) | 1.3/5500 |
| Ignition system | T.C.I |
| Spark plug | A7RTC/UR5 |
| Lowest fuel consumption（g/kW.h） | 420 |
