YK200F-GASONLINE

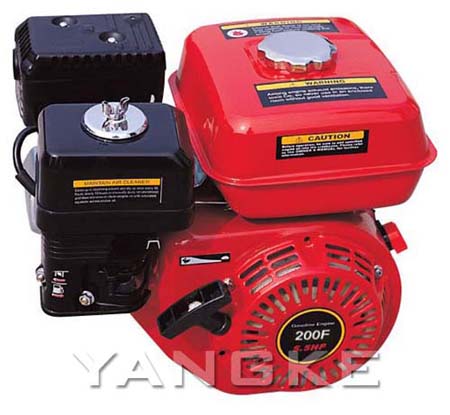

Name: YK200F Air-cooled Gasoline Engine
Model: YK200F
Technical specifications
Description:
* OHV leads to the lower fuel consumption.
* Oil alert automatically shut off the engine.
* Electronic ignition.
* Recoil starter makes the safe starting.
Applications: Generators, Pumps, Air compressors, Agricultural equipment, Small construction equipment.
| Model | YK200F | |
|---|---|---|
| Engine type | OHV, single cylinder, 4-stroke, air-cooled | |
| Rated rotation speed (r/min) | 3000 | 3600 |
| Rated output power kW (HP) | 3.6 (4.8) | 3.9 (5.3) |
| Fuel consumption (g/kW*h) | ≤395 | |
| Oil consumption (g/kW*h) | ≤6.8 | |
| Noise dBA/7m | 70 | |
| Bore×Stroke (mm) | 68×54 | |
| Displacement (cc) | 196 | |
| Compression ratio | 8.5:1 | |
| Lubrication model | Splashing | |
| Starting system | Recoil starter | |
| Direction of rotation | Clockwise (view from flywheel) | |
| Ignition method | Transistorized magneto | |
| Fuel type | Automotive unleaded gasoline | |
| Lube brand | SAE15W40 (above CC grade) | |
| Fuel tank capacity (L) | 3.6 | |
| Lube capacity (L) | 0.6 | |
| Dimension (L×W×H) (mm) | 362×312×335 | |
| Packing size (L×W×H) (mm) | 410×375×400 | |
| Net weight (kg) | 16 | |
Please read your Owner's Manual and all labels before operation.
