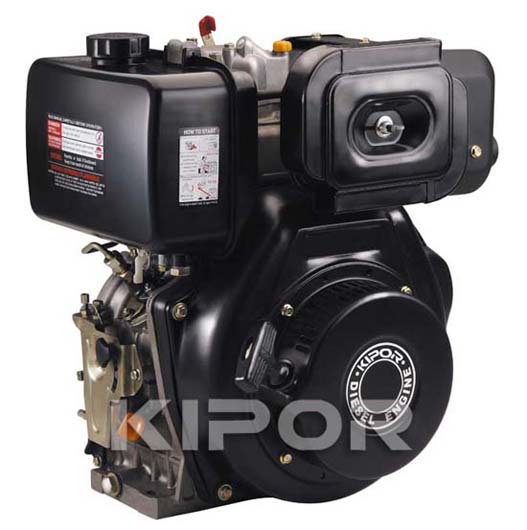

KM186F/FE-DIESEL
Description:
* The miniaturized fuel injection system
* Low fuel consumption
* Lightweight and compact design
* Easy and fast starting
* Stand up the hard work
Type | Single cylinder,vertical,four-stroke,air-cooled,direct injection |
---|---|
Bore×stroke [mm] | 86×70/86×72 |
Displacement[L] | 0.406/0.418 |
Compression ratio | 19 |
Rated power/rated speed(kW/r/min) | 5.7/3000 6.3/3600 |
The lowest stablespeed at zero load(r/min) | ≤1300 |
Rated speed(rpm) | 2.8/3600 |
Lubricating system | pressure splashed |
Starting system | Recoil starter or Electric starter |
Rotation direction(face to the output shaft) | Anticlockwise |
Fuel type | -20# |
Fuel tank capacity(L) | 5.5 |
Fuel consumption[(g/kW·h)/r/min] | 275.1/3000 281.5/3600 |
Lube oil type | CD Grade or SAE10W-30,15W-40 |
Lube oil capacity | 1.65 |
Starting motor capacity(V、kW) | 12V 0.8kW |
Charging generator capacity(V、A) | 12V 3A |
Accumulator capacity(V、Ah) | Above 12V36Ah |
Overall dimension(L×W×H)(mm) | 420×440×495 |
Dry weight[kg] | Recoll starter:≤47 Electric starter:≤53 |
